WPC Solid Doors Frames

WPC Solid Door Frames

We are one of the leading manufacturers of WPC Door Frames. This format of frame is becoming very much interesting for business, architects and all other retail customers. Rajvi WPC Door frames are Eco-Friendly, Water Proof, Termite Proof, Weather Resistant and Fire Retardant. This gives a uniform quality for all types of WPC Doors, Wooden Doors and other Composite Doors. Termite and Borer can’t damage these frames and it can hold screw very well for long life. Our frames are made from 100% Superior quality of raw materials. Our frames are paintable and also suitable for any other surface process for make it more decorative.

Available Size (Inch) :-

  • 3 x 2 (75 x 50 mm)
  • 4 x 2 (100 x 50 mm)
  • 4 x 2.5 (100 x 63 mm)
  • 5 x 2.5 (125 x 63 mm)

Available Length (Feet) :-

  • 7 Feet
  • 10 Feet
  • 17 Feet
  • Customize

Available Colour :-

  • Brown
  • Ivory

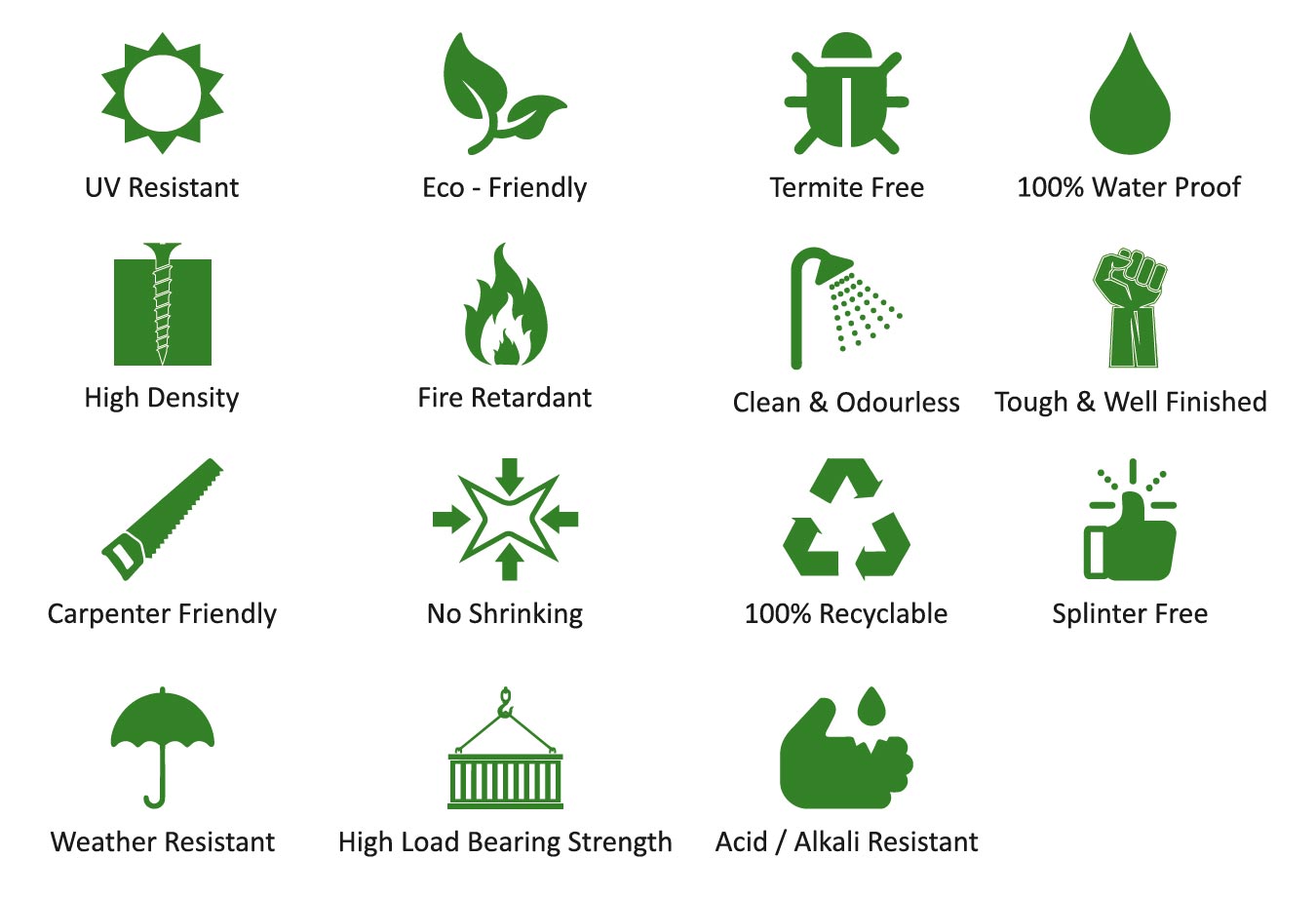

Rajvi WPC Solid Door Frame Features :-

Applications of WPC Solid Door Frames

  • Main Door Frame
  • Bedroom Door Frame
  • Bathroom Door Frame
  • Office Door Frame
  • Living Room Door Frame
  • Industrial Door Frame
  • Partition Door Frame
  • Pre-Fab House Door Frame

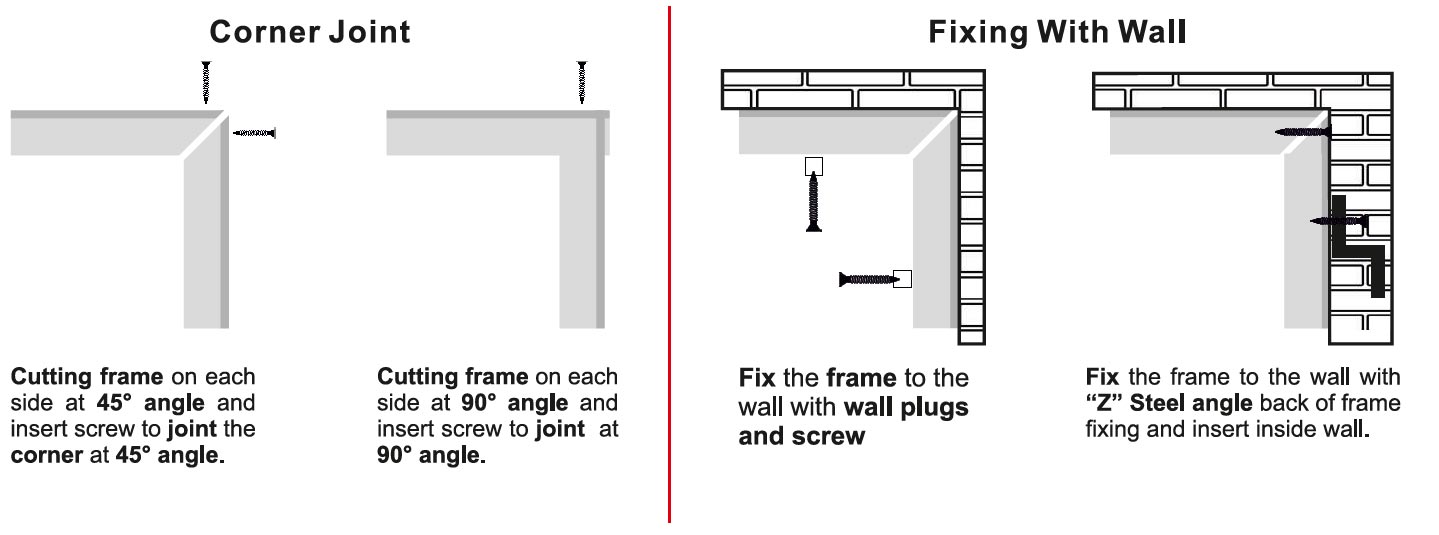

Easy To Install & Long Life :-


Recommendation:

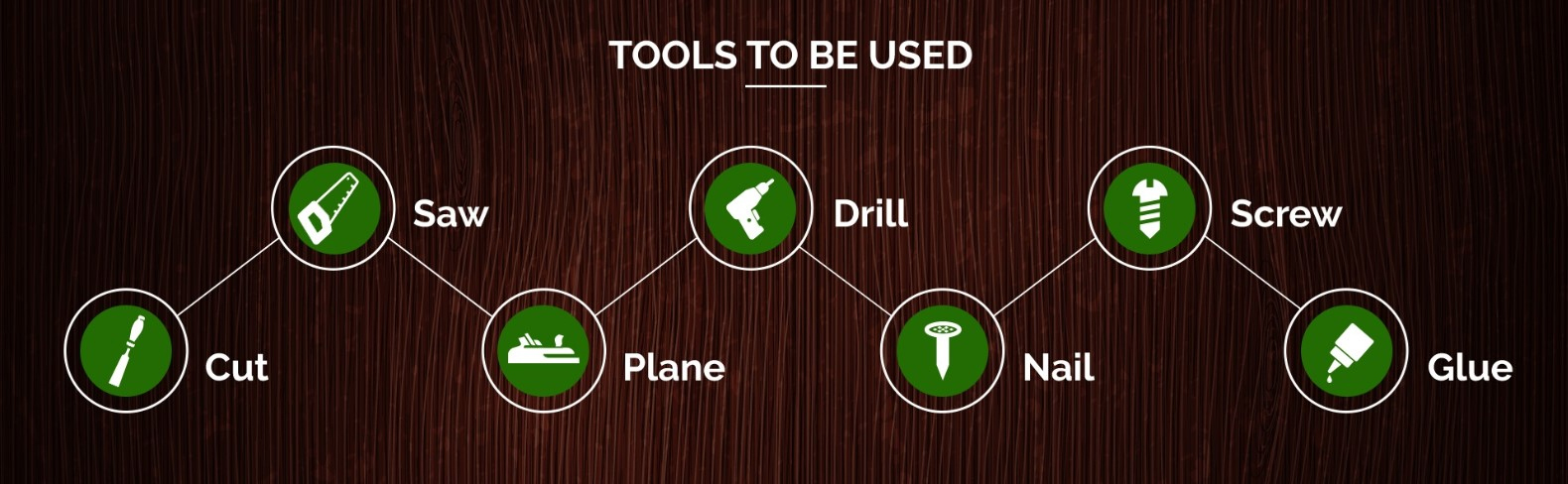

Rajvi WPC Door frames don’t require Special tools to work. Only Conventional carpenter's tool will sufficient for work and Process.

  • Recommended Tools: Drilling machine, Hacksaw Blade, Saw, Hammer / Mallet, Pliers, Snips, Chisel and Wood working square.
  • Recommended Adhesive: Cement Solvent Adhesive (WPC to WPC), Silicon Based Adhesive (WPC to Laminate), Silicon Based Wood Adhesive (WPC to Veneer).
  • Recommended Accessories: Screws, European Series Hinges, L-Hinges / But Hinges / Ordinary Hinges and Wax Filler.

Technical Property for Rajvi WPC Door Frames

Technical Properties Index
Material Wood Polymer Composite (WPC)
Material Composition PVC, Wood Powder, CaCo3, Other Additives
K Value 57 - 67 (Suspension Grade)
Material Density 850 - 900 Kg/cm3
Water Absorption Ratio ≤ 0.5%
Tensile Strength 39.40 N/mm3
Screw Withdraw Strength - Face 1500 N
Screw Withdraw Strength - Edge 900 N
Modulus of Rupture 36.0 N/m3
Modulus of Elasticity 1910 N/m3
Loading Test - Edge 160 N
Elongation strength ≥10 (MPa)
Elongation rate of break ≥10
Softening Point ≥70 (C°)
Flexural Strength ≥ 15 (MPa)
Thermal Vicat Softening Temperature ≥ 75 (Cº)
Thermal Vicat Deflection Temperature @ 1.8 MPa 60 (Cº)
